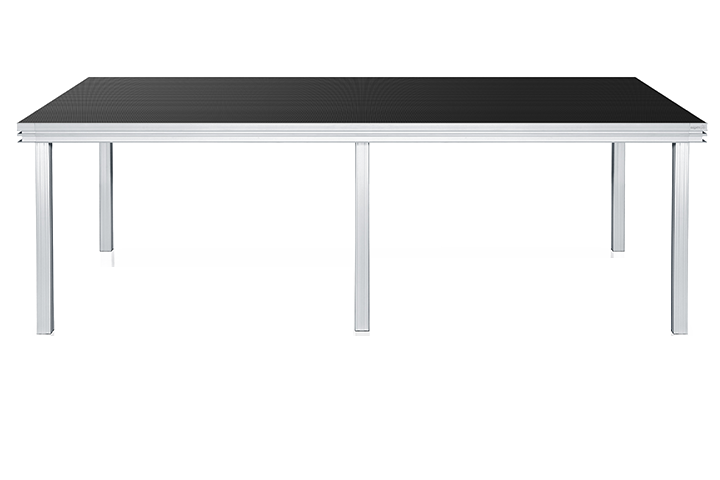

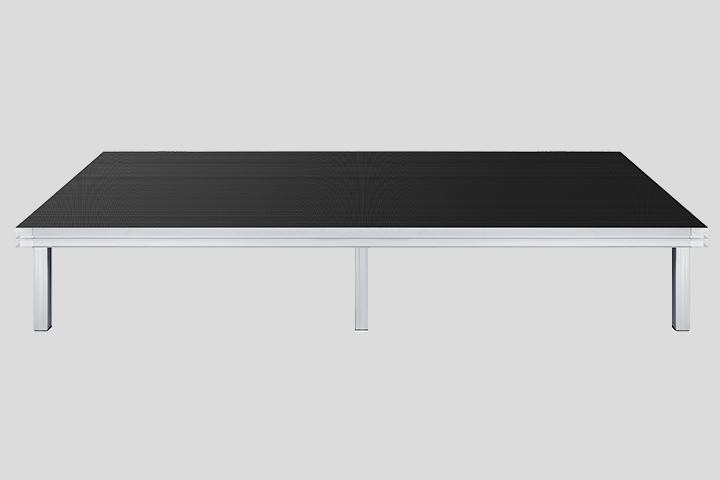

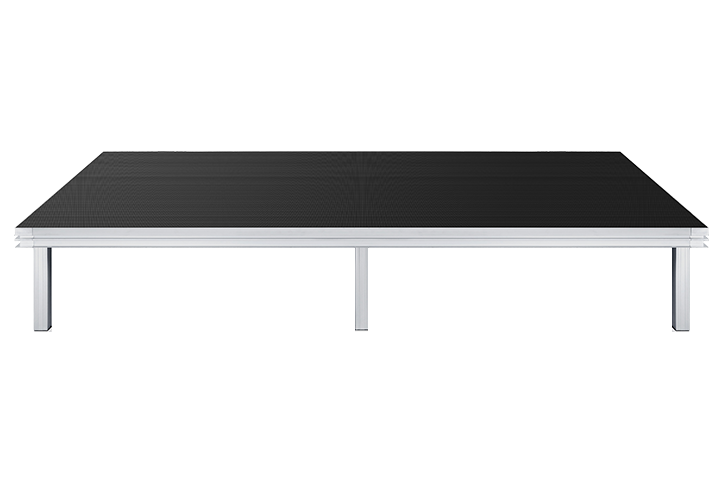

Platform Staging

Alges comprehensive all-in-one platform stage allows users to create multiple layout options and configurations. The deck size and leg height are fully customizable making this one of the most popular and cost effective platform systems on the market.

Specification

  • Multiple stage height is designed as follows:
Model# Standard Platform Size: Unit Weight
APS100 3' x 6' (91cm x 183cm) 66 lbs (30 kg)
APS200 3' x 8' (91cm x 244cm) 86 lbs (39 kg)
APS300 4' x 6' (122cm x 183cm) 82 lbs (37 kg)
APS400 4' x 8' (122cm x 244cm) 106 lbs (48 kg)
  • Standard Stage Height:

  • 8" (20cm), 16" (41cm), 24" (61cm), 32" (81cm) and 40" (102cm)

  • Metric system 20cm/ 40cm/ 60cm/ 80cm/ 100cm is available.

  • Adjustable telescoping leg set:

  • 133C168: 20" (51cm), 24" (61cm), and 28" (71cm)

  • 133C169: 28" (71cm), 32" (81cm), 36" (91cm) and 40" (102cm)

  • Pin adjusters allow easy and convenient height adjustment.

  • Custom stage leg heights are also available.

  • Lightweight deck of solid 3/4" (19 mm) plywood.
  • Deck surface options:

  • Black standard: 3/4" (19 mm) plywood with black phenolic anti-slip surface

  • Grey carpet: 3/4" (19 mm) plywood with 15/64" (5.8 mm) carpet.

  • Carpet is 80% Polypropylene, 20% Polyester fine ribbed cord carpet.

  • Loading rate meets or exceeds building code requirements.

  • Stage loading rate is 154 lbs/ft2 (750 kg/m2)

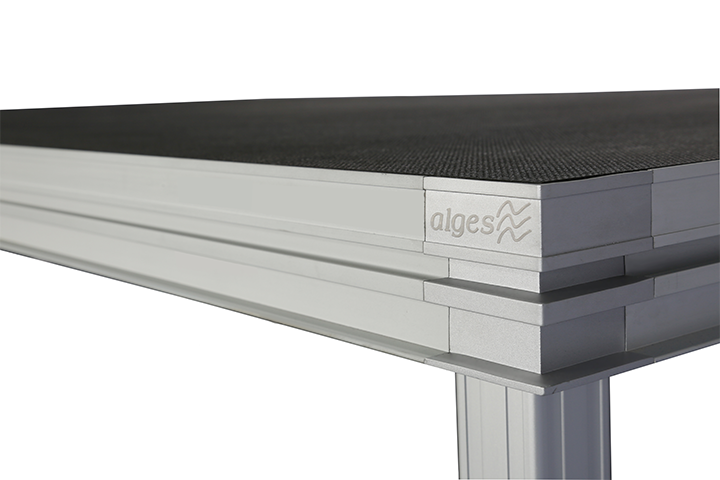

  • Frames and legs are fabricated from aluminium extrusion with a clear anodized finish.

  • Legs lock quickly into leg socket with the rotation of knobs.

    • Non-marking glides for floor protection.
    Unit-to-unit connectors are designed to lock units together.

Accessories

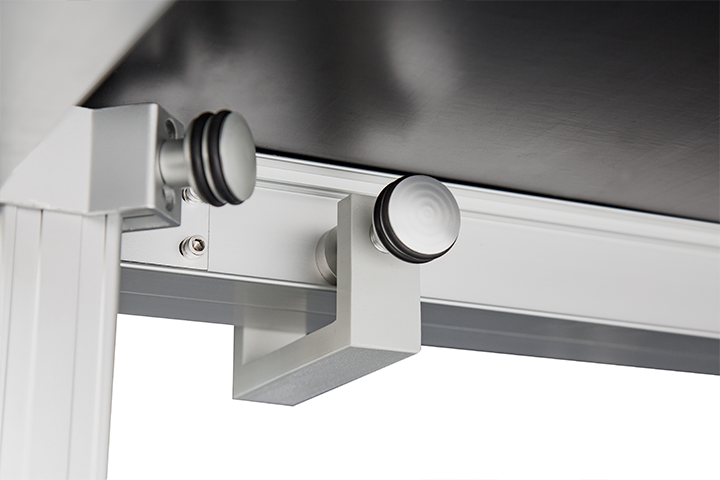

Unit-to-Unit Connector


Lock the decks together in place when units are set up side by side.

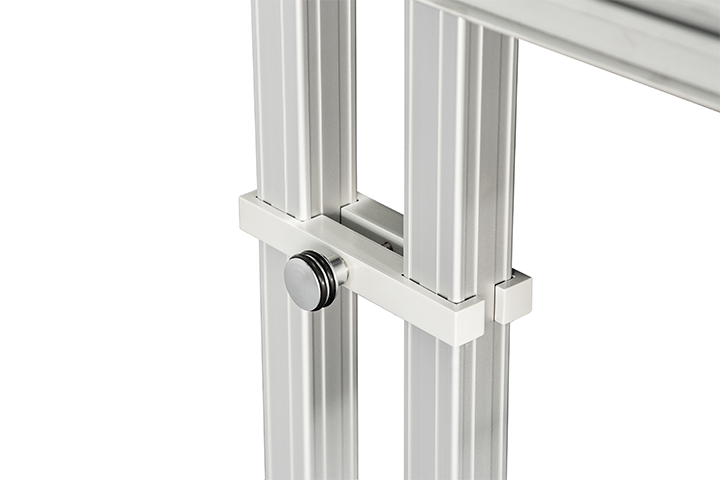

Leg Connector


Join the different platforms to each other by their legs and to stabilize the whole modular structure.

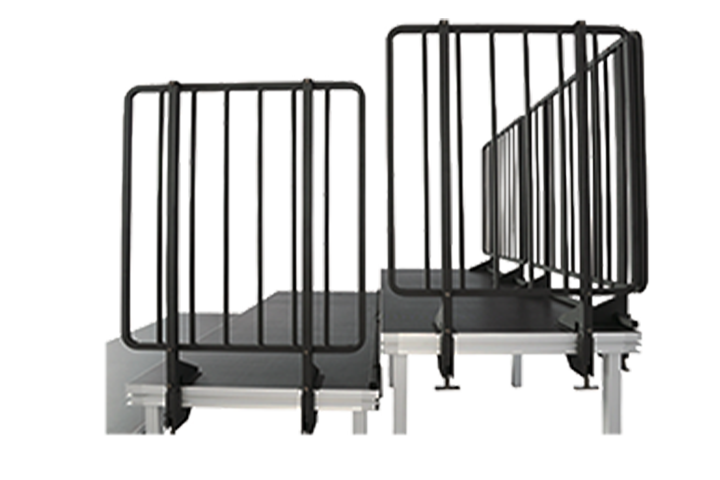

Riser Guardrails

  • APG 900 : 3' L(90cm) x 42" H(110cm)
  • APG 1200: 4' L(120cm)x 42" H(110cm)
* Comply with IBC 2015/ICC 300 2012 Guardrail Safety Testing Standards.

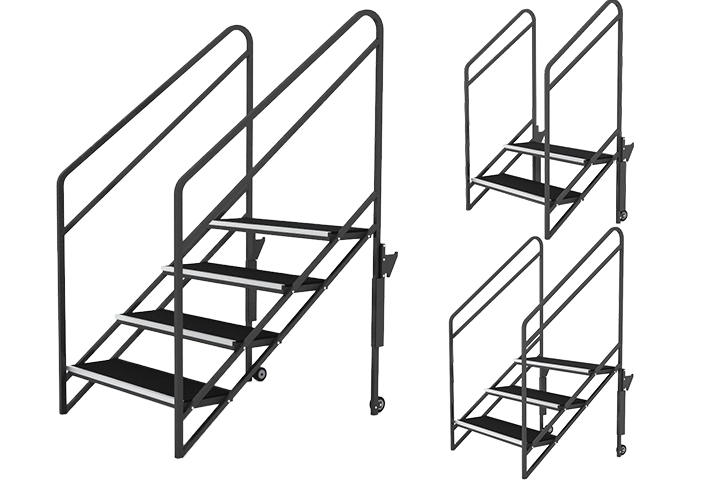

Universal Stairways

  • AGUS 2 2-step Stairway for 16'' (400mm) and 24'' (600mm) high stage 40 lbs (18 kg)
  • AGUS 3 3-step Stairway for 24'' (600mm) and 32'' (800mm) high stage 73 lbs (33 kg)
  • AGUS 4 4-step Stairway for 32'' (800mm) and 40'' (1000mm) high stage 92 lbs (42 kg)
* Stairways feature a hook bracker for use with either mobile or platform staging.

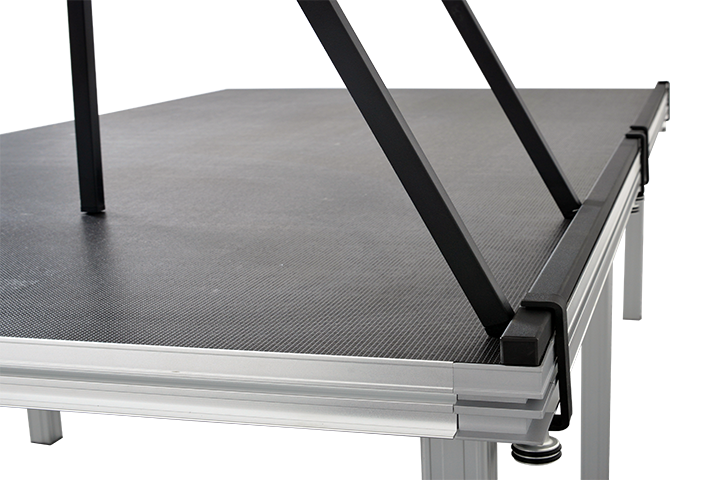

Chair Stops

  • ACS 900 : 3' L(90cm) x 3/4" W (19mm)
  • ACS 1200: 4' L(120cm)x 3/4" W (19mm)
* The quality chair stops add another level of security for seated risers.

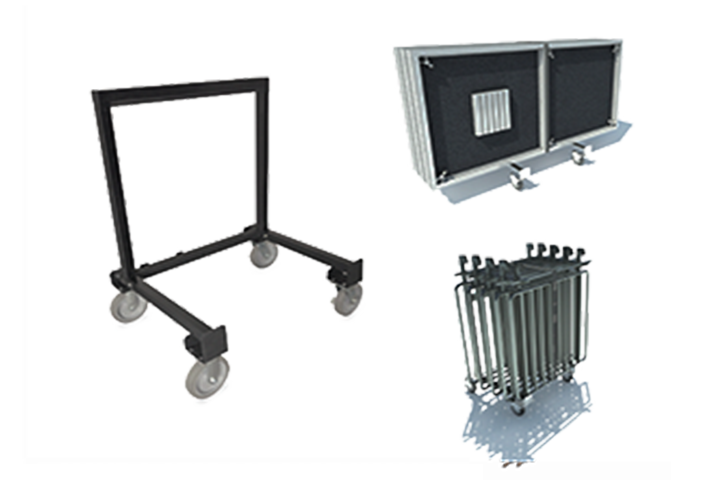

Move & Storage Cart (Small)

  • APS K6
  • 32" L(80cm) x 32" W(80cm) x 42" H(110cm)
* Loading Capacity : 6 units platforms or 8 unit guardrails
