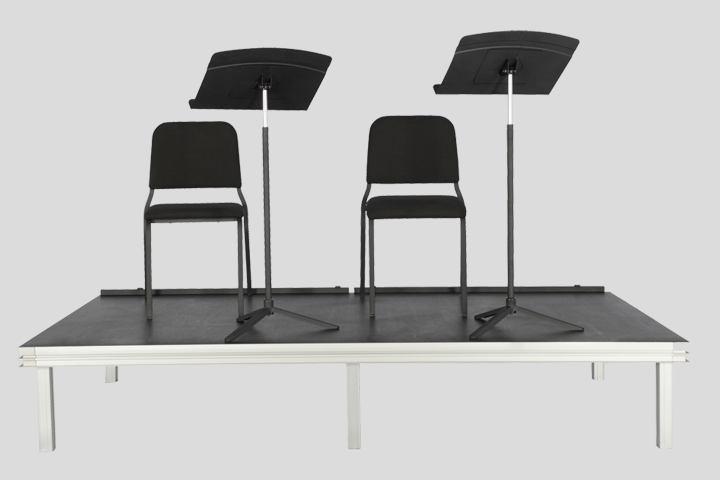

Orchestra / Band Risers

ALGES Seated Riser system is strong, versatile, and offers easy setup. The Seated Riser system can be arranged with different layouts -Orchestra or Band Risers, Choral Seated Risers and Black Box Audience Seating Risers that perfect for performing arts centers, choral groups, churches, schools, black box theaters and more! The latest in technological advances also makes our risers take up less space, leaving you with plenty of room or acoustic vibrations. You will reap saving for the life of the risers with ability to use them for virtually thousands of performances from graduation commencement to orchestral concert.

Specification

  • Riser Height:
    • 8" (20 cm), 16" (41 cm), 24" (61 cm) and 32" (81 cm)

  • Custom Risers heights are also available.

  • Lightweight deck of solid 3/4" (19 mm) plywood.

  • Deck surface options:
    • 3/4" (19 mm) plywood with black phenolic anti-slip surface
    Grey carpet: 3/4" (19 mm) plywood with 15/64" (5.8 mm) carpet.
    Carpet is 80% Polypropylene, 20% Polyester fine ribbed cord carpet.

  • Loading rate meets or exceeds building code requirements.

  • Stage loading rate is 154 lbs/ft2 (750 kg/m2)

  • Frames and legs are fabricated from aircraft-grade aluminum extrusion with a clear anodized finish.

  • Legs lock quickly into leg socket with the rotation of knobs.

  • Non-marking glides for floor protection.

  • Unit-to-unit connectors are designed to lock units together.

  • A full array of accessories to complete the set-up: stairway, carts, guardrail and drapery.


Configuration

Accessories

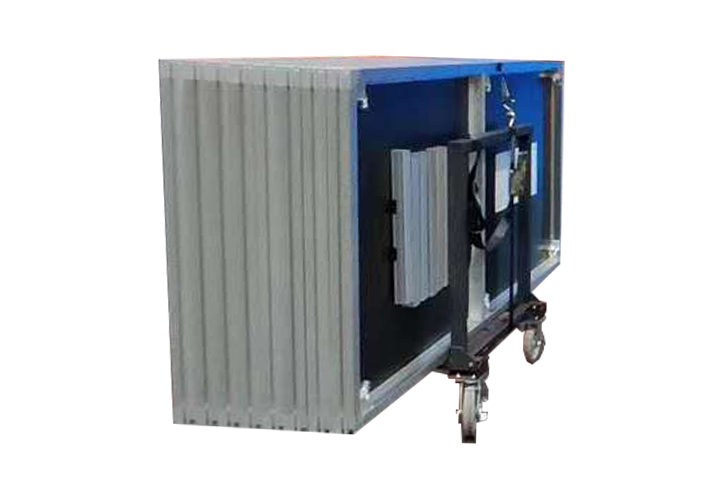

Move & Storage Cart (Small)

  • APS K6

  • 32'' L(80cm) x 32'' W(80cm) x 42'' H(110cm)

  • Loading Capacity : 6 units platforms or 8 units guardrails.

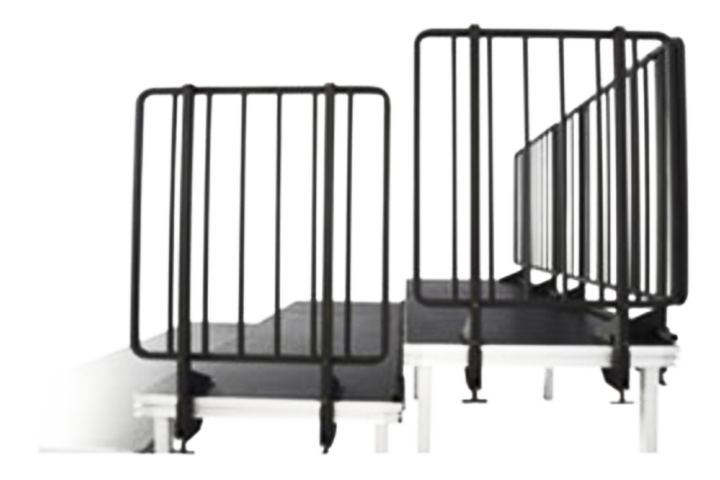

Alges Guardrails

  • Comply with IBC 2015/ICC 300 2012 Guardrail Safety Testing Standards.

  • Guardrail for Alges Platform Staging is an optional accessory to provide additional Security

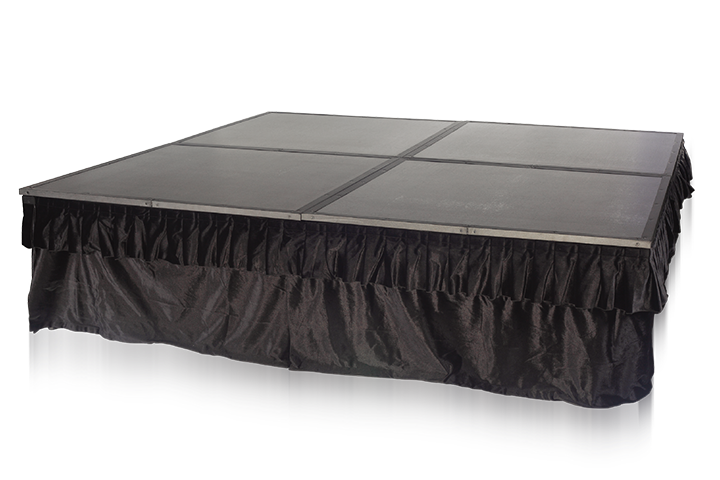

Adjustable Height Drapery

  • Drapes are height adjustable using Velco strips.

  • Material: 100% polyester
